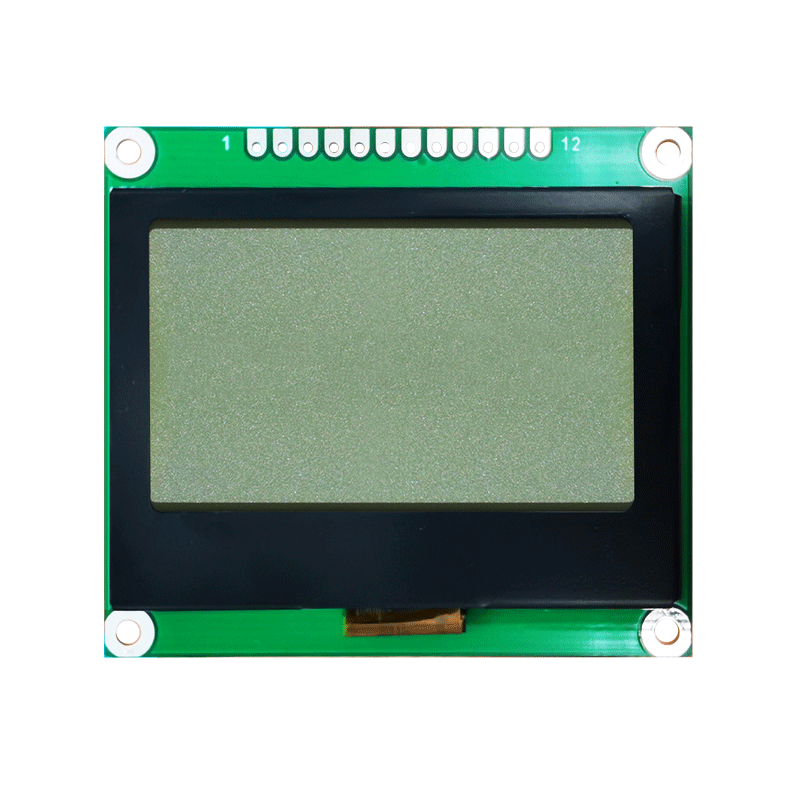

类型：COB LCD Module
显示像素：128x64

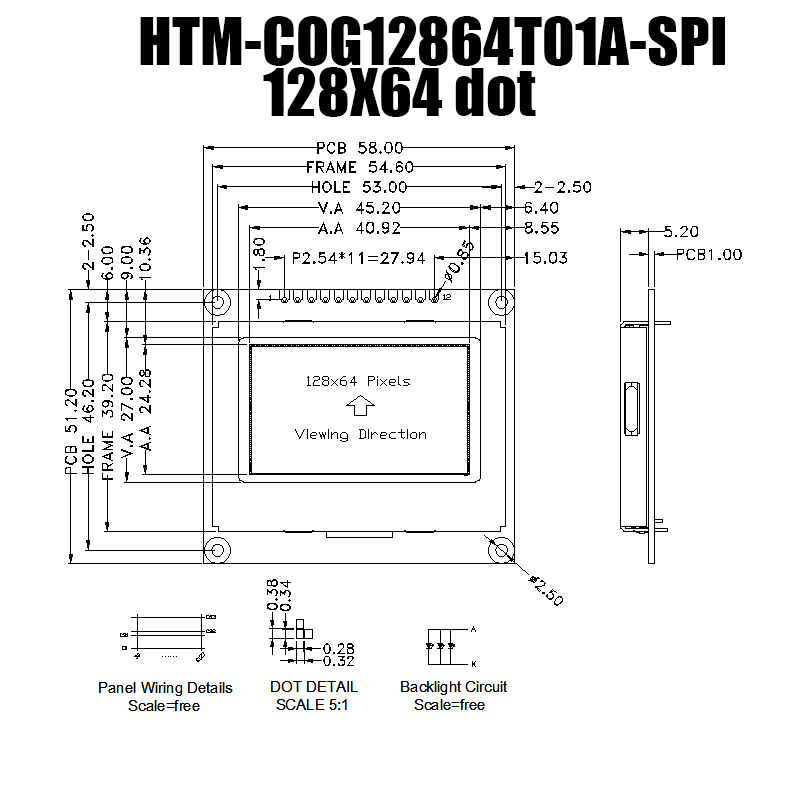

外形尺寸(mm) ：58x51.2x6.2
VA尺寸(mm)：54.6x39.2
AA尺寸(mm) ：128x64
点间距mm：0.38x0.32
有效尺寸mm：45.2x27
应用：仪器仪表
视角：6H

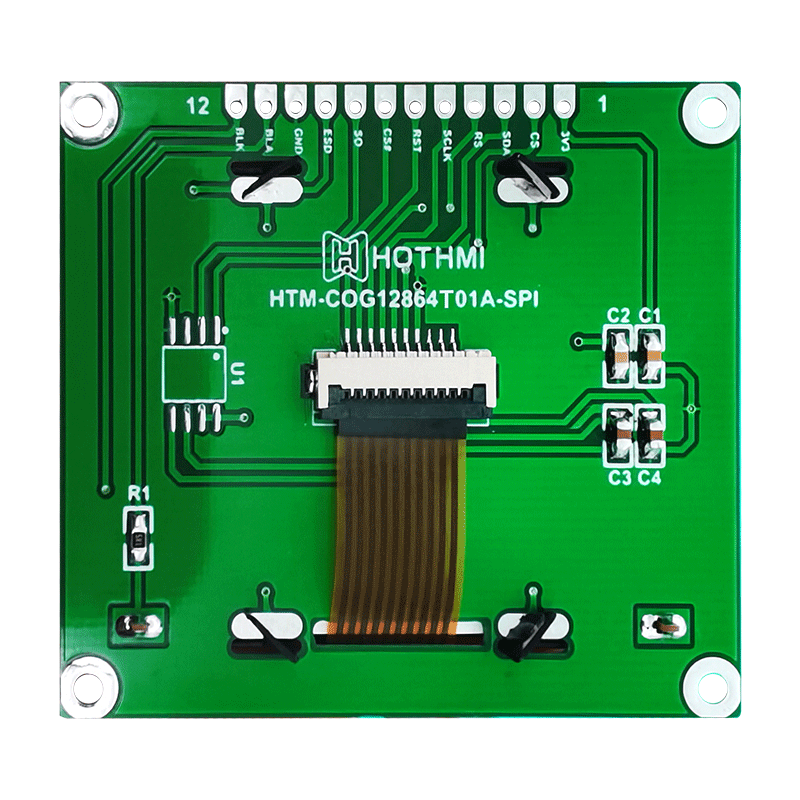

引脚：12pin
接口方式：SPI
特殊说明：抗静电ESD 8KV
工作温度：-30~80℃
供电电压：3.3V
驱动芯片：ST7567

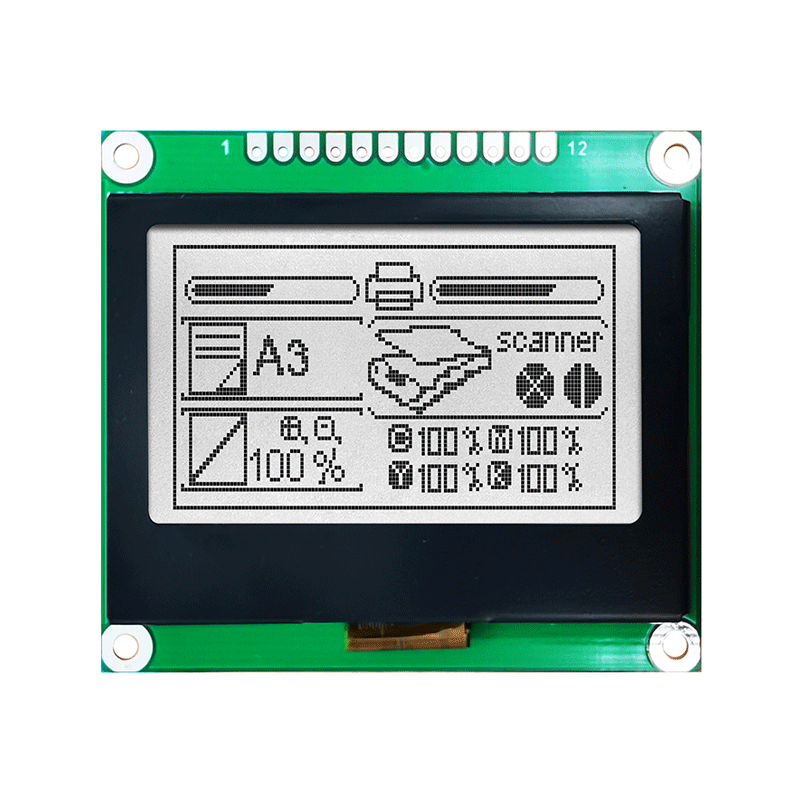

介绍HTM-COG12864T01A-SPI，一款可靠且高质量的单色图形模块，非常适合需要宽温度范围的仪器仪表应用。其工作温度范围为-30℃~80℃，该模块可在恶劣环境和极端条件下运行状况。该模块采用 128x64 像素透反式 LCD 显示屏，提供清晰易读的视觉效果，6 点钟视角。FSTN (+) 正极显示和内置负电压确保出色的对比度和清晰度，使其适用于适用于明亮和昏暗的环境。HTM-COG12864T01A-SPI 有现货，可随时用于您的仪器项目。立即订购并利用这款可靠的高性能 LCD 模块来增强您的设计。
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 128x64 | dots |
| Module dimension | 58x51.2x6.2mm | mm |
| View display area | 54.6x39.2mm | mm |
| Dot size | 0.34x0.28 | mm |
| Dot pitch | 0.38x0.32 | mm |
| Operating temp | -30~80 | ℃ |
| Storage temp | -40~80 | ℃ |
| Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V | |
| Viewing direction | 6H | |
| Display mode | FSTN | |
| Display type | TRANSMISSIVE / NEGATIVE | |
| Driver IC | ST7567 | |
| Backlight | WHITE | |
| Product application | industrial control, instrumentation | |
