类型：TFT竖屏
显示像素：800x1280
外形尺寸(mm) ：99.79x161.6x2.55
VA尺寸(mm)：7.0
AA尺寸(mm) ：7.0
有效尺寸mm：94.20x150.72
应用：家电，车载显示
视角：全视角

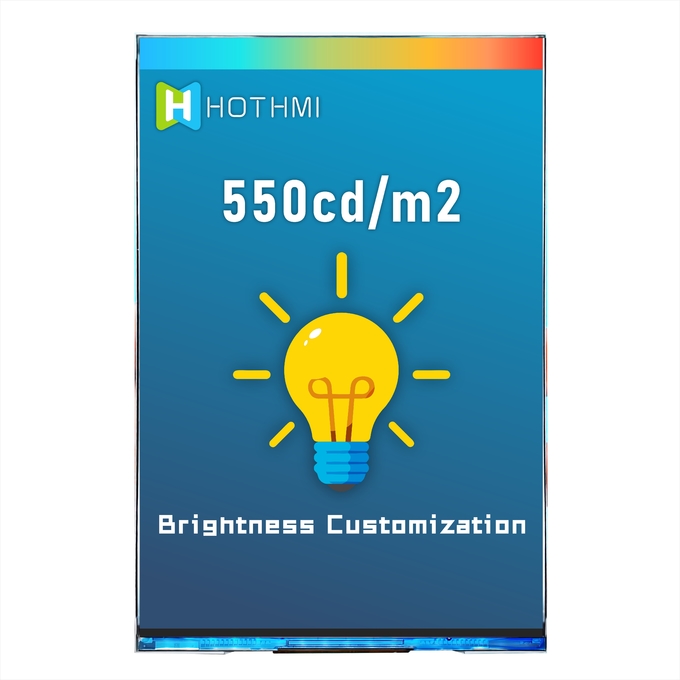

背光/亮度：550cd/m2
引脚：40pin
接口方式：MIPI

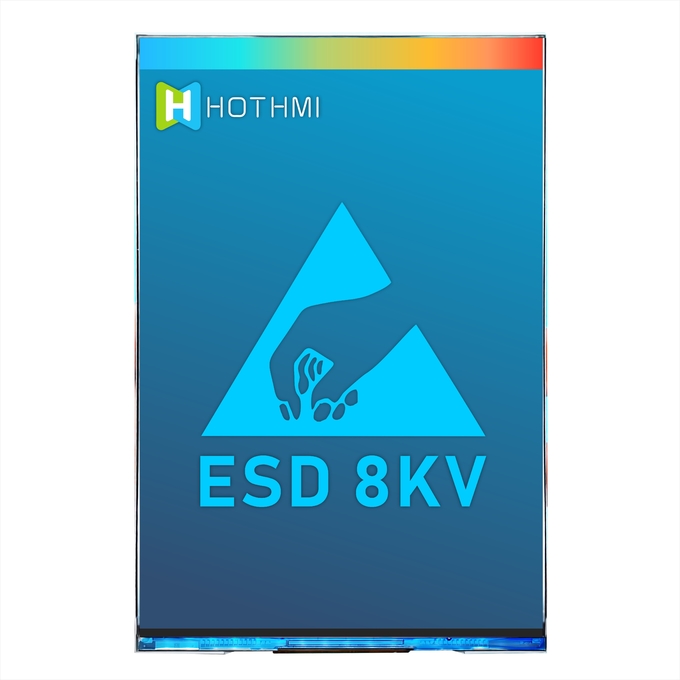

特殊说明：抗静电ESD 8KV
工作温度：-20~60℃
供电电压：3.3V
驱动芯片：ILI9881C

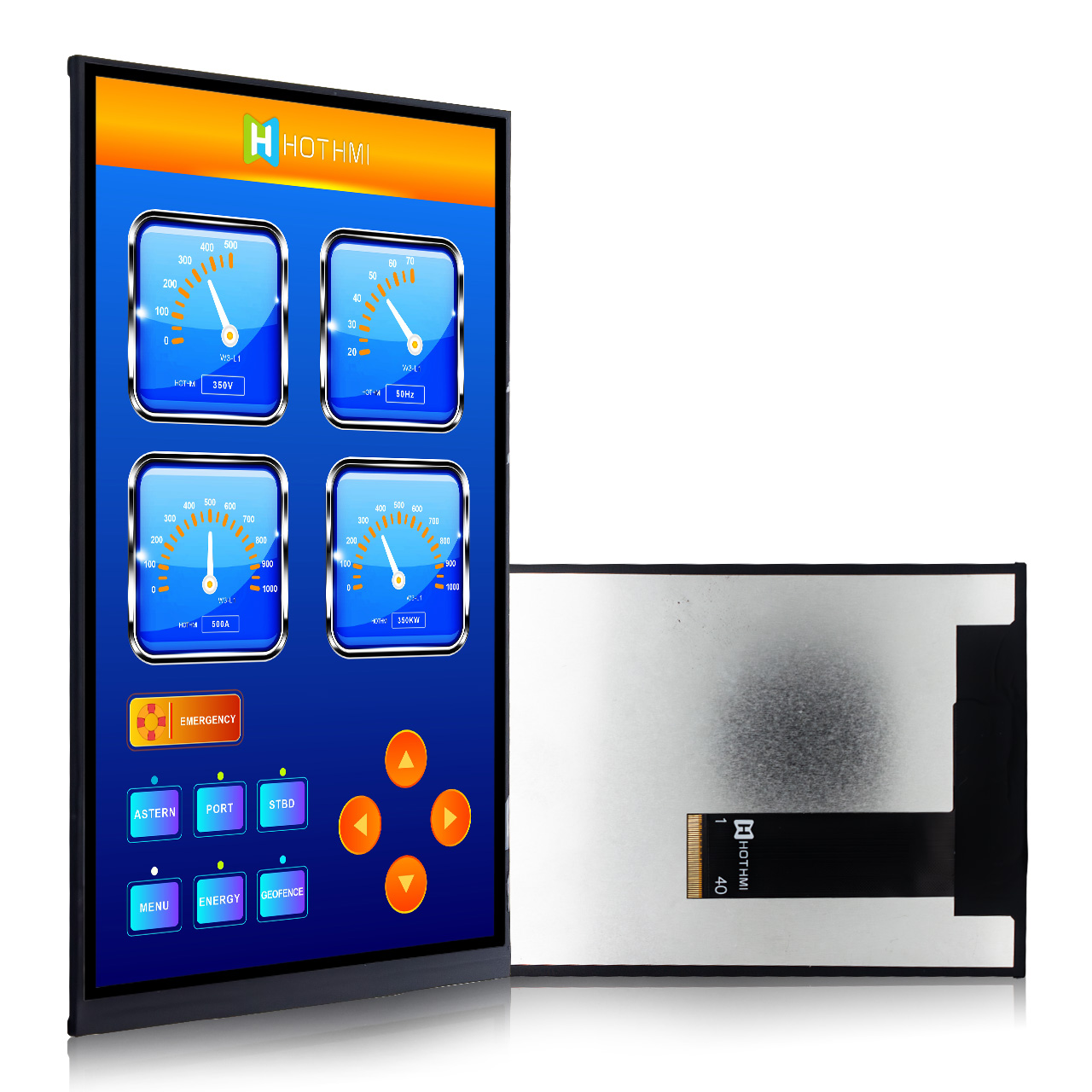

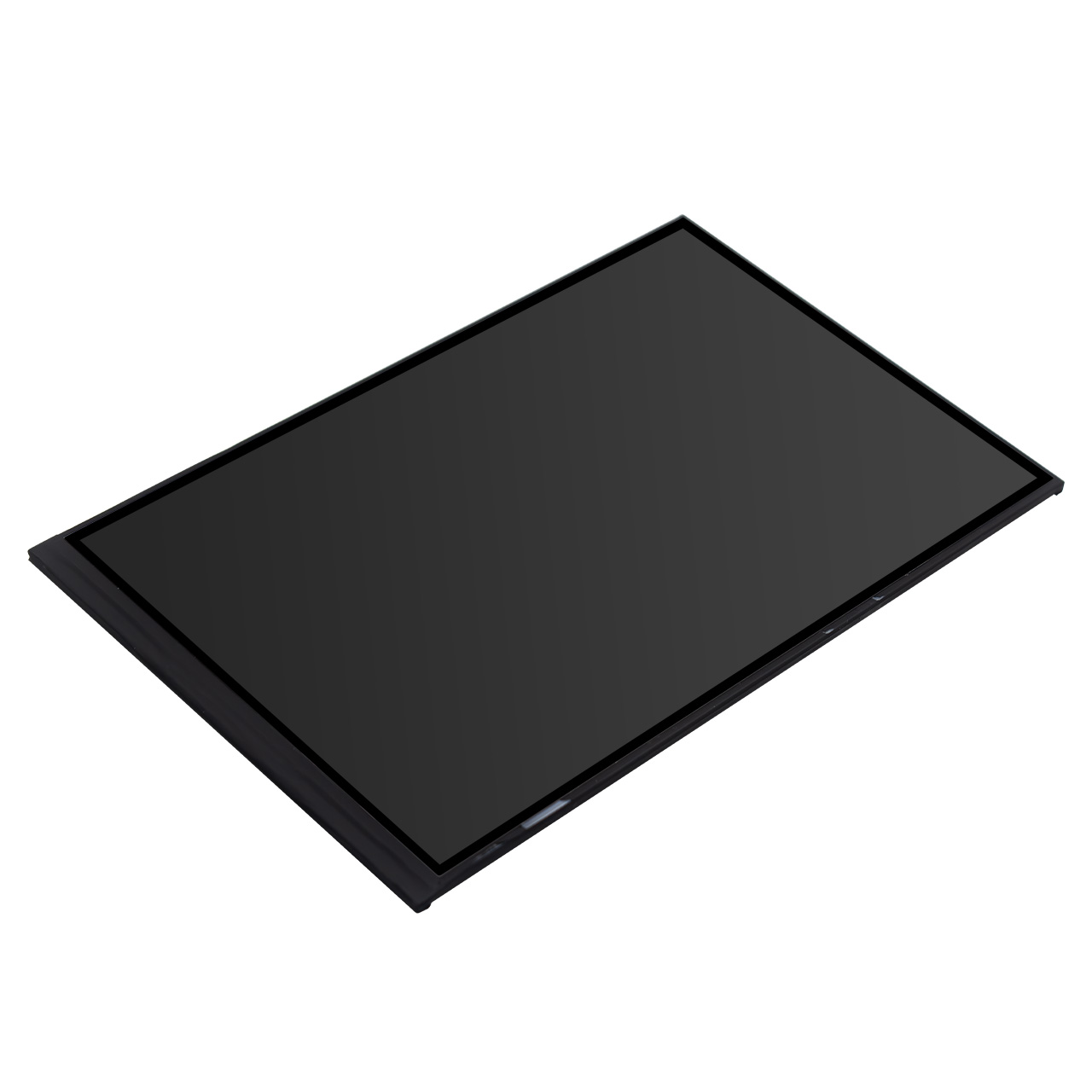

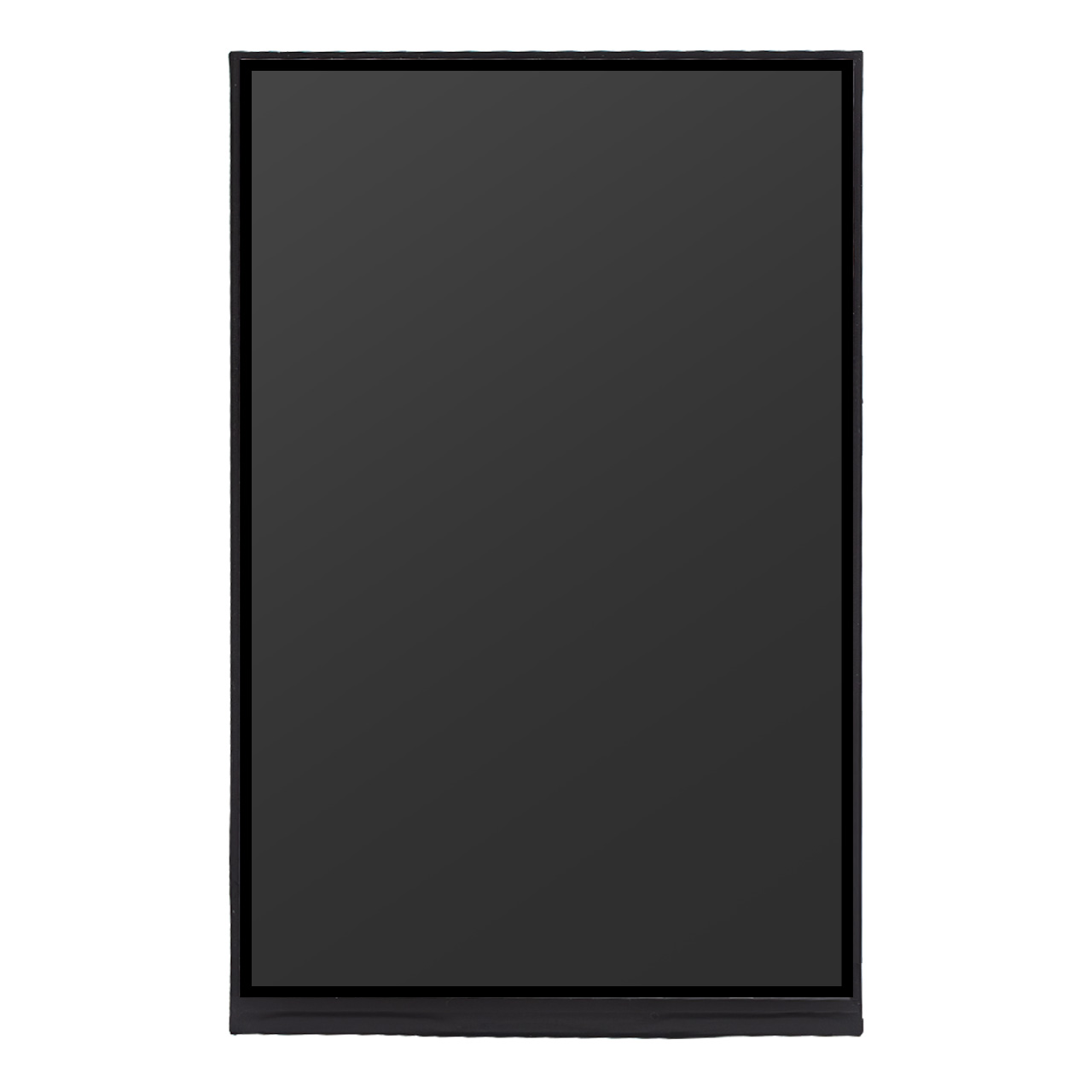

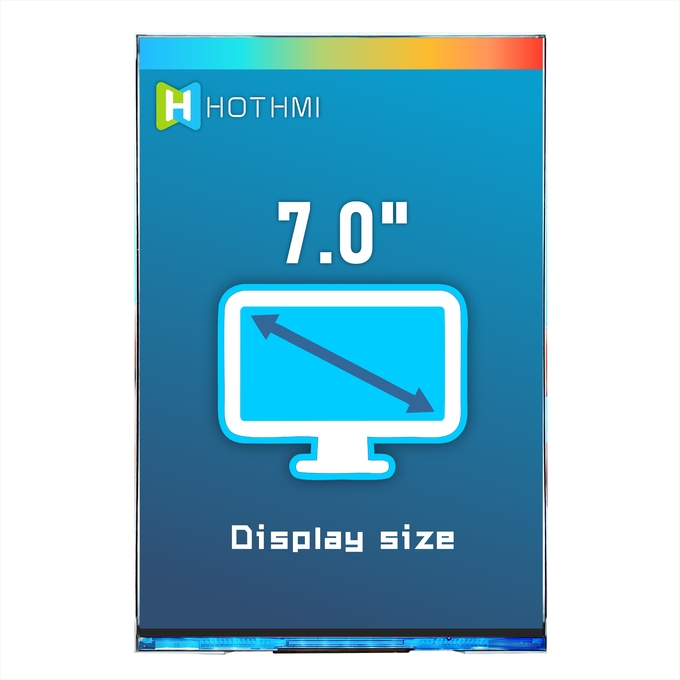

7英寸 800X1280 分辨率 TFT LCD显示器制造商 TFT-H070B13HDIIL5N40
7 英寸显示器 1280 X 800 显示器 TFT LCD 显示器制造商用于电器
TFT-H070B13HDIIL5N40 | 7.0" IPS LCD Display | TFT LCD Display Manufacturer | 800x1280 resolution | -20℃~60℃ | For Appliances
隆重推出 Hotdisplay 公司的 TFT-H070B13HDIIL5N40 7.0" IPS LCD 显示器 - 是需要可靠、高质量小型显示器的任何人的完美解决方案。这款 TFT LCD 显示器分辨率为 800x1280，可提供令人惊叹、清晰和清晰的画面 肯定会给人留下深刻印象的图像。
这款显示器由领先的 TFT LCD 显示器制造商制造，配备 IPS LCD 屏幕，可提供卓越的色彩准确度和宽视角。 它的工作温度范围为 -20℃ 至 60℃，旨在承受最恶劣的条件，非常适合用于电器和其他苛刻环境。
无论您是在市场上购买紧凑型手持设备、数码相机还是便携式显示器，TFT-H070B13HDIIL5N40 都是您的完美选择。 凭借其小巧的尺寸和高分辨率，它提供了一定会超出您期望的无缝用户体验。
立即选择 Hotdisplay 公司的 TFT-H070B13HDIIL5N40，体验性能、可靠性和质量的完美平衡。
General Feature
Item | Standard Value | Unit | ||
Display Size | 7.0 | Inch | ||
Number of Pixels | 800(H)*3(RGB)* 1280(V) | dots | ||
Active Area | 94.20x150.72mm | mm | ||
Outline Dimension | 99.79x161.6x2.55 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | MIPI 4L | - | ||
Driver IC | ILI9881C | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||
TFT Operation AT | -20 ～ +60 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||

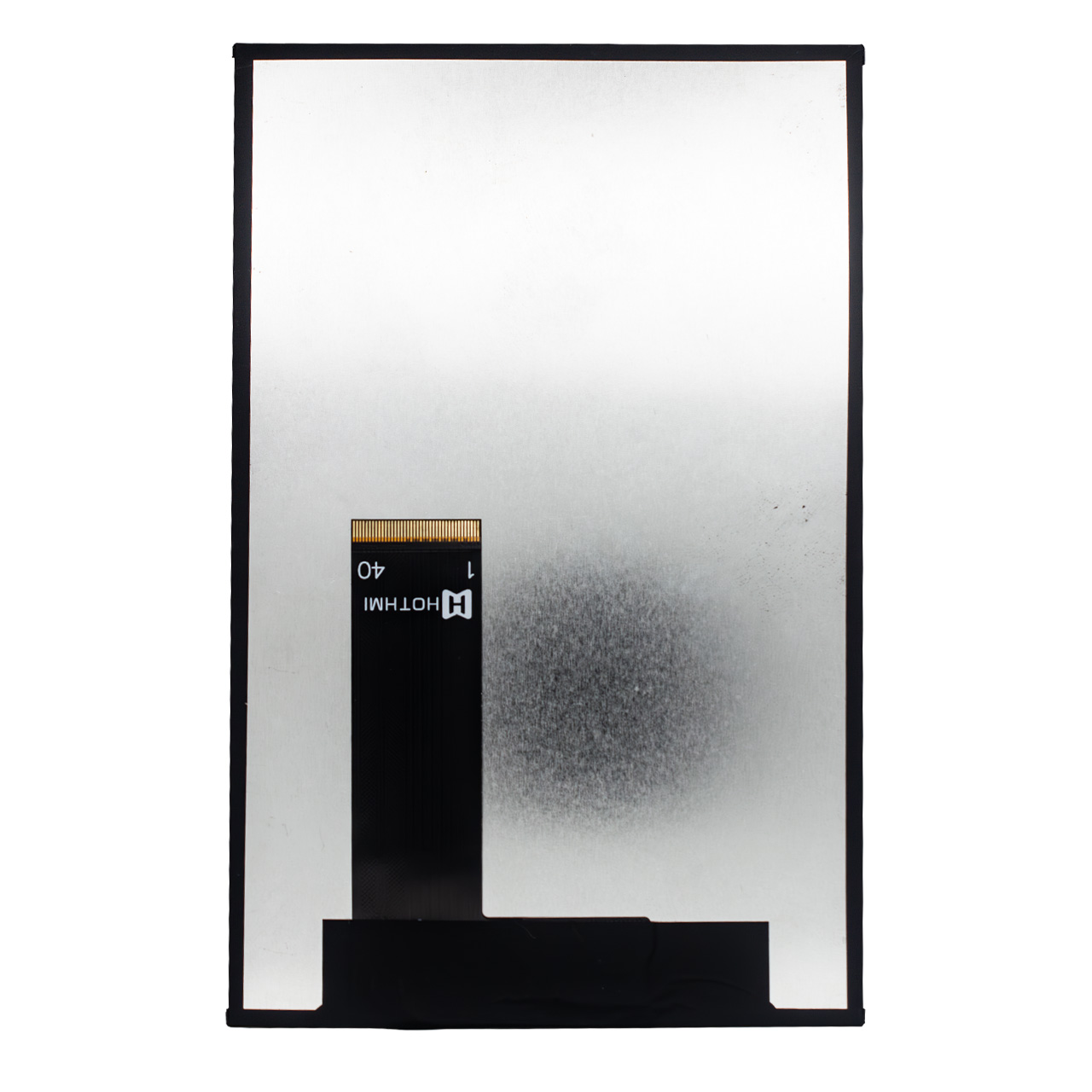

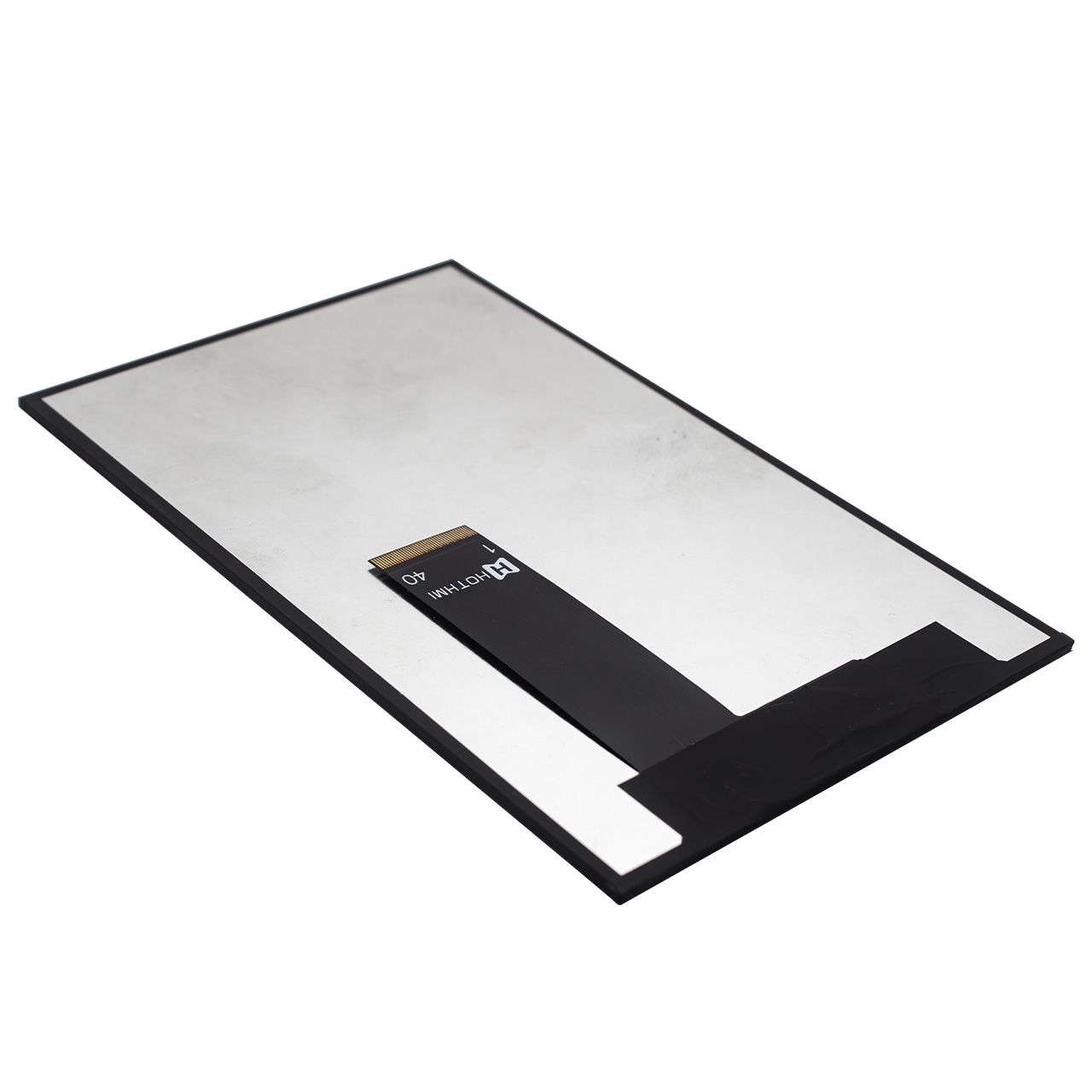

TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | NC | Not connected |
| 2 ~ 3 | VCI | Power supply |
| 4 | NC | Not connected |
| 5 | RESX | Reset pin |
| 6 | NC | Not connected |
| 7 | GND | Power supply ground |
| 8 | D0N | MIPI Negative data signal (-) |
| 9 | D0P | MIPI Positive data signal (+) |
| 10 | GND | Power supply ground |
| 11 | D1N | MIPI Negative data signal (-) |
| 12 | D1P | MIPI Positive data signal (+) |
| 13 | GND | Power supply ground |
| 14 | DCKN | MIPI Negative clock signal (-) |
| 15 | DCKP | MIPI Positive clock signal (+) |
| 16 | GND | Power supply ground |
| 17 | D2N | MIPI Negative data signal (-) |
| 18 | D2P | MIPI Positive data signal (+) |
| 19 | GND | Power supply ground |
| 20 | D3N | MIPI Negative data signal (-) |
| 21 | D3P | MIPI Positive data signal (+) |
| 22 | GND | Power supply ground |
23 | TE | Tearing effect output pin.Leave the pin open when not in use |
| 24 ~ 30 | NC | Not connected |
| 31 ~ 32 | LEDK | LED cathode |
| 33 ~ 38 | NC | Not connected |
| 39 ~ 40 | LEDA | LED anode |
