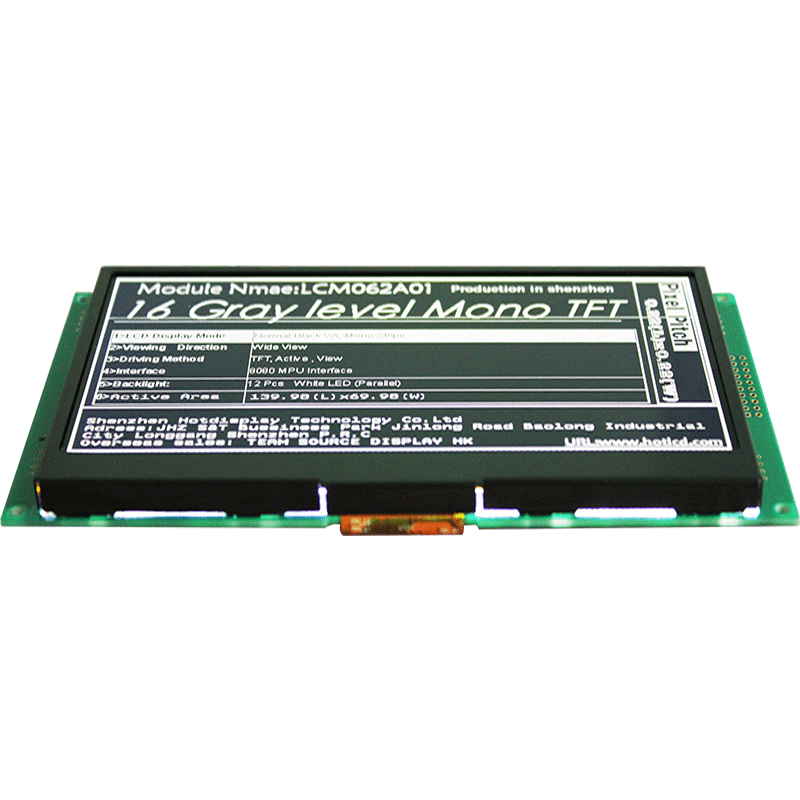

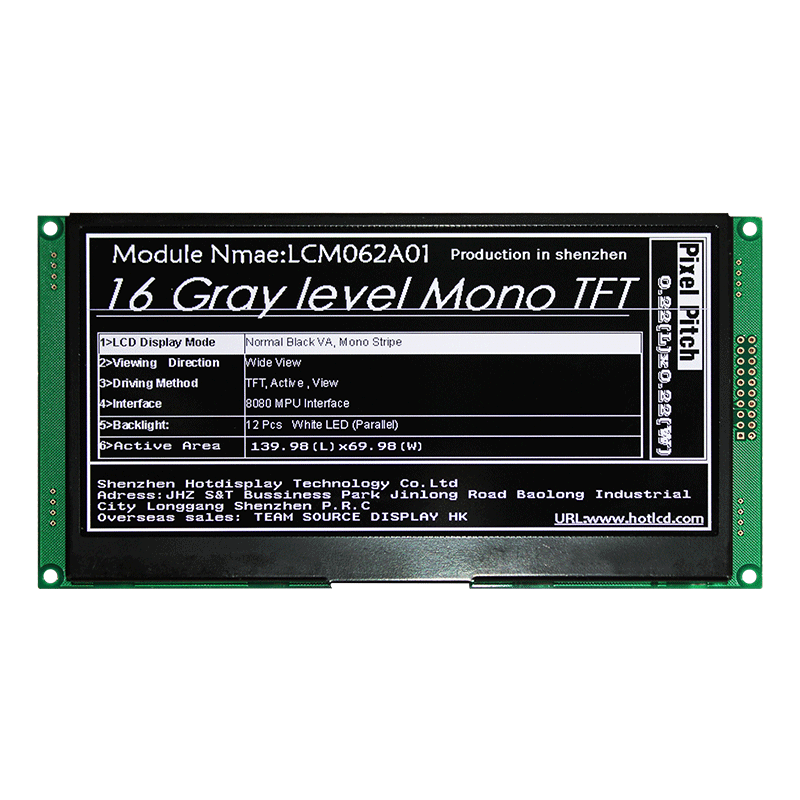

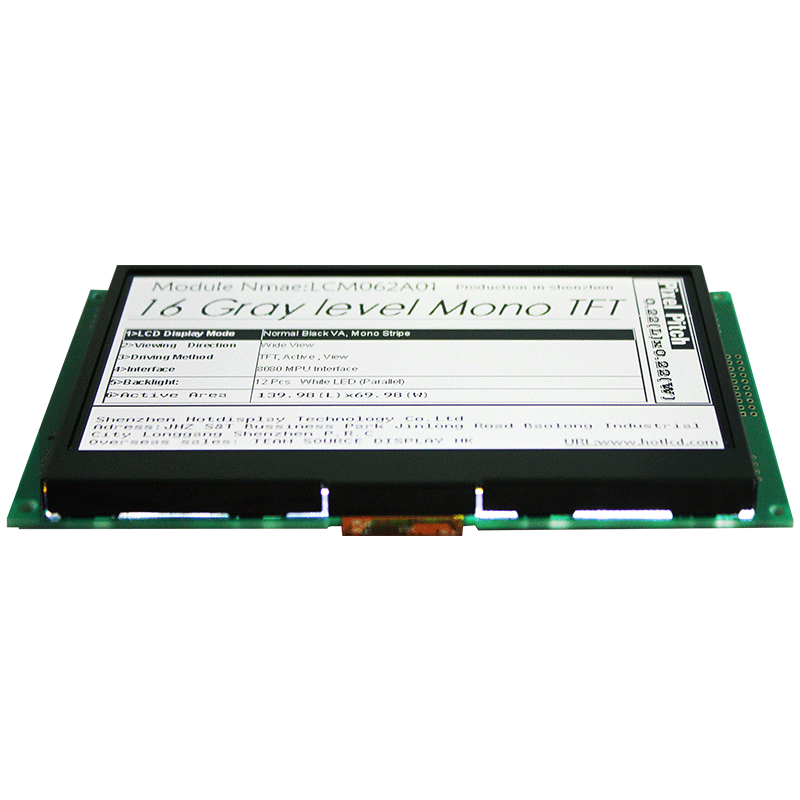

隆重推出我们的 6.2 英寸 MONO TFT LCD 显示屏，分辨率为 640x320 像素，对比度为 1000:1。 该显示器专为工业仪表应用而设计，拥有 6H 视野，适用于各种环境。

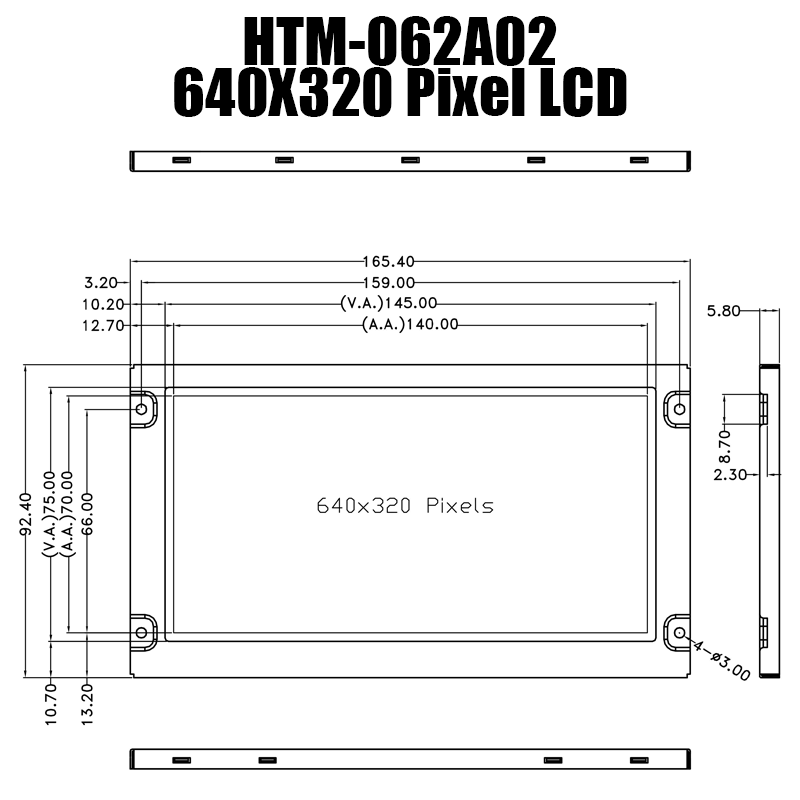

该显示器尺寸为 165.4mm x 92.4mm x 5.8mm，显示尺寸为 6.2 英寸，有效显示面积为 140.0mm x 70.0mm。 显示屏采用橙色背光，即使在明亮的阳光下也能保证显示的清晰度。
这款 MONO TFT LCD 显示器非常适合在工业环境中使用，在这些环境中，显示的清晰度和易用性至关重要。 其高对比度确保即使是最详细的图像和图形也能清晰准确地显示。
投资这款 6.2 英寸 MONO TFT LCD 显示器以满足您的工业仪器需求，并体验显示器无与伦比的清晰度和性能。
|Number of Pixels||640(H)* 320(V)||dots|
|Viewing Direction||6H O'clock||-|
|Touch Panel||WHITOUT TOUCH|
|CTP Driver IC||-||-|
|TFT Operation AT||-20 ～ +70||℃|
|TFT Storage AT||-30 ～ +80||℃|
|Reliability Testing||Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.|
|Glass Cleanliness||Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.|
|Bezel Appearance||Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.|
|PCB Appearance||PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.|
|Soldering||Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.|
|Consistency||Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.|
|Product Integrity||Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.|
|Glass Color||While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.|
|ESD Protection & Safety||All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.|
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

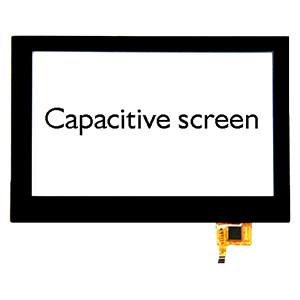

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

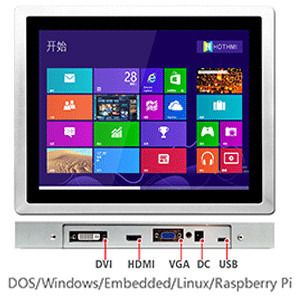

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
