类型：TFT电容触控屏
显示像素：480x800
外形尺寸(mm) ：60.86x102.57x2.3
VA尺寸(mm)：4.3
AA尺寸(mm) ：4.3
有效尺寸mm：56.16x93.6
应用：车载，医疗，工控

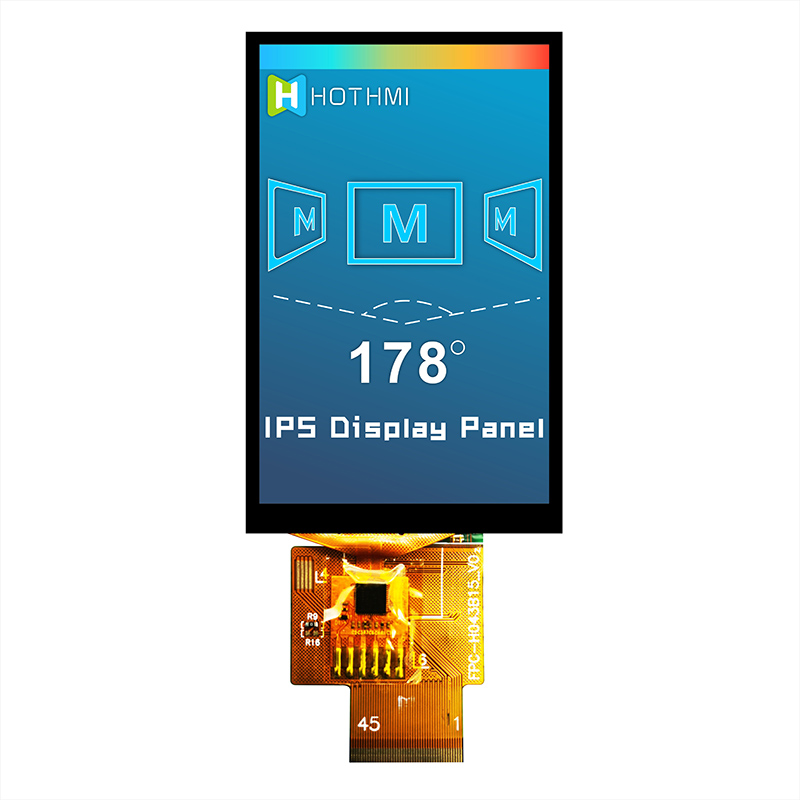

视角：全视角

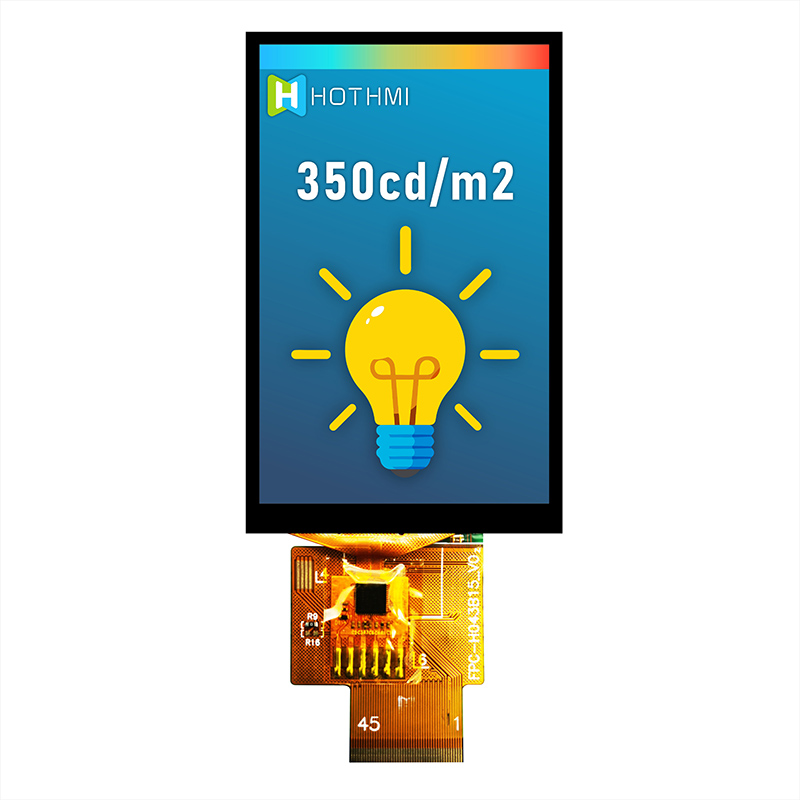

背光/亮度：350cd/m2
引脚：45pin
接口方式：SPI

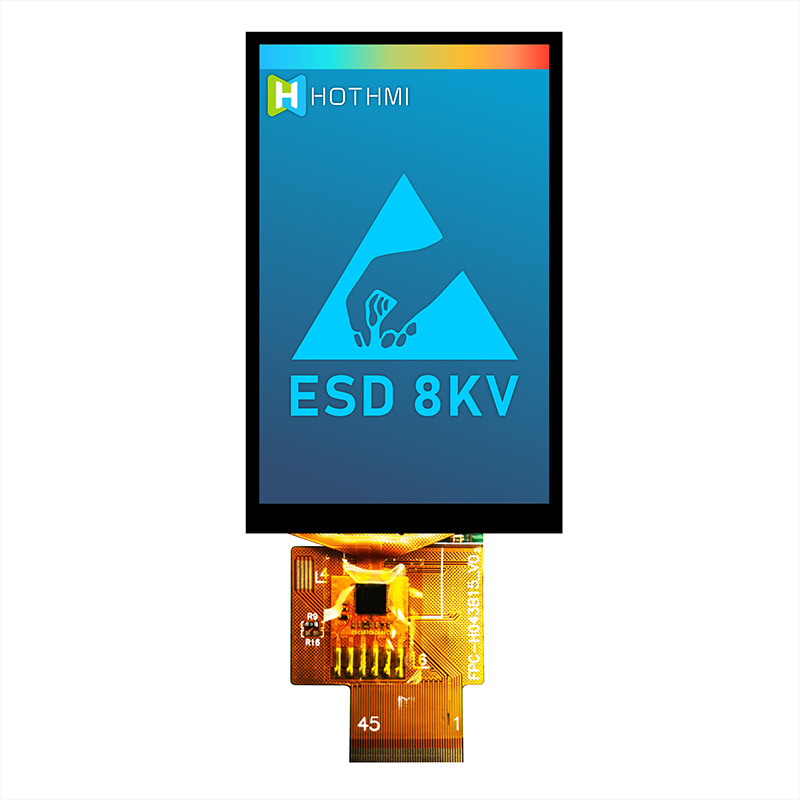

特殊说明：抗静电ESD 8KV

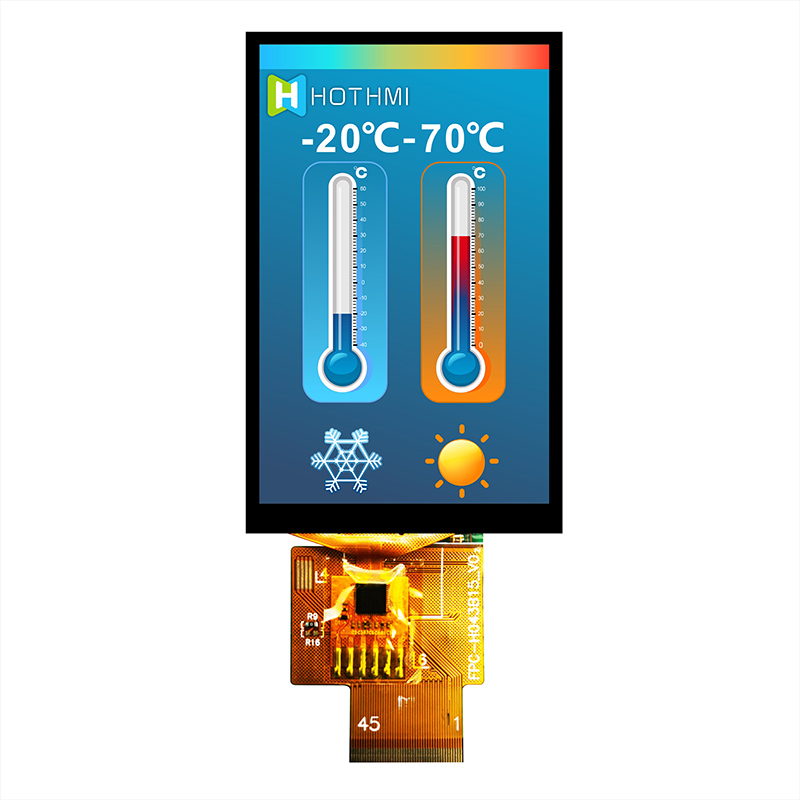

工作温度：-20~70℃
供电电压：3.3V

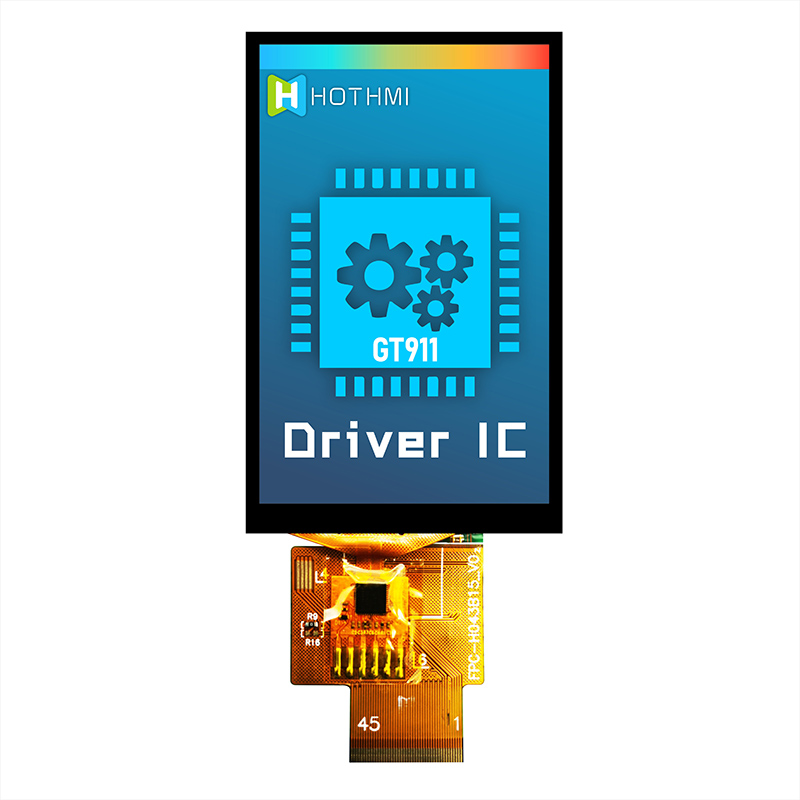

驱动芯片：ST7701S<TFT>,GT911<CTP>

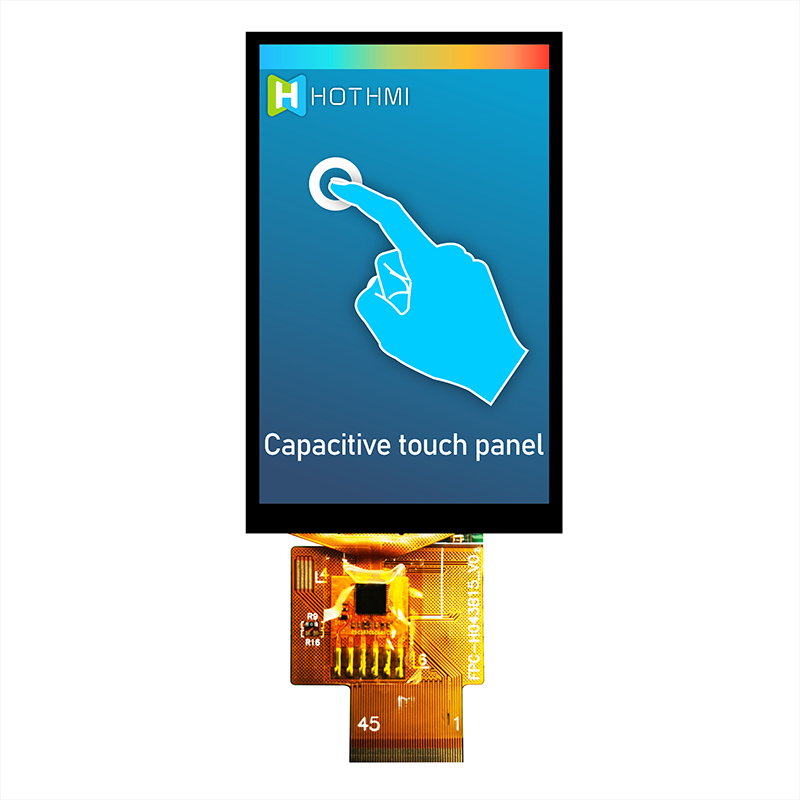

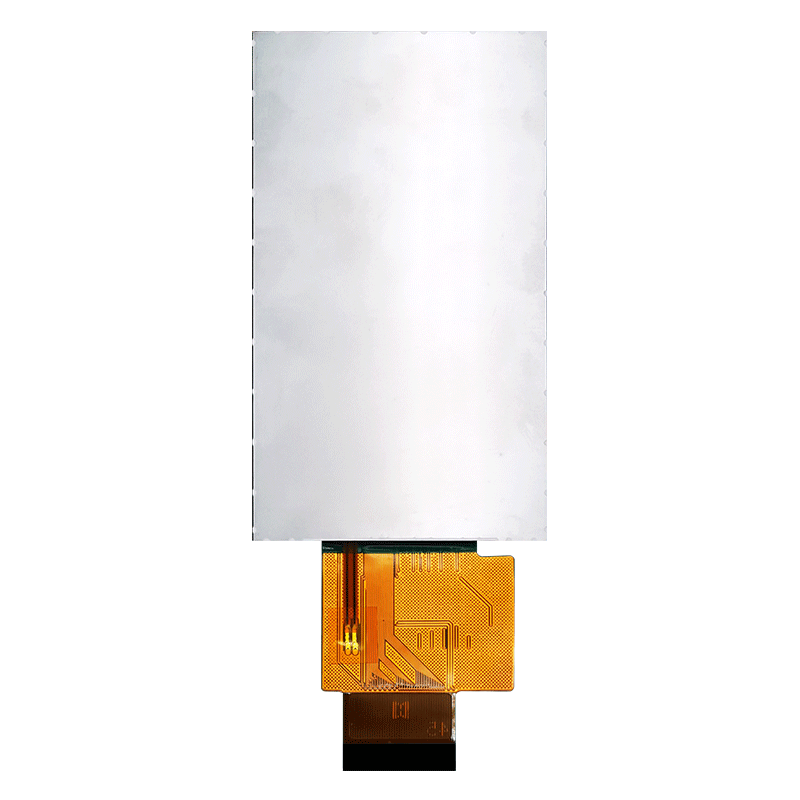

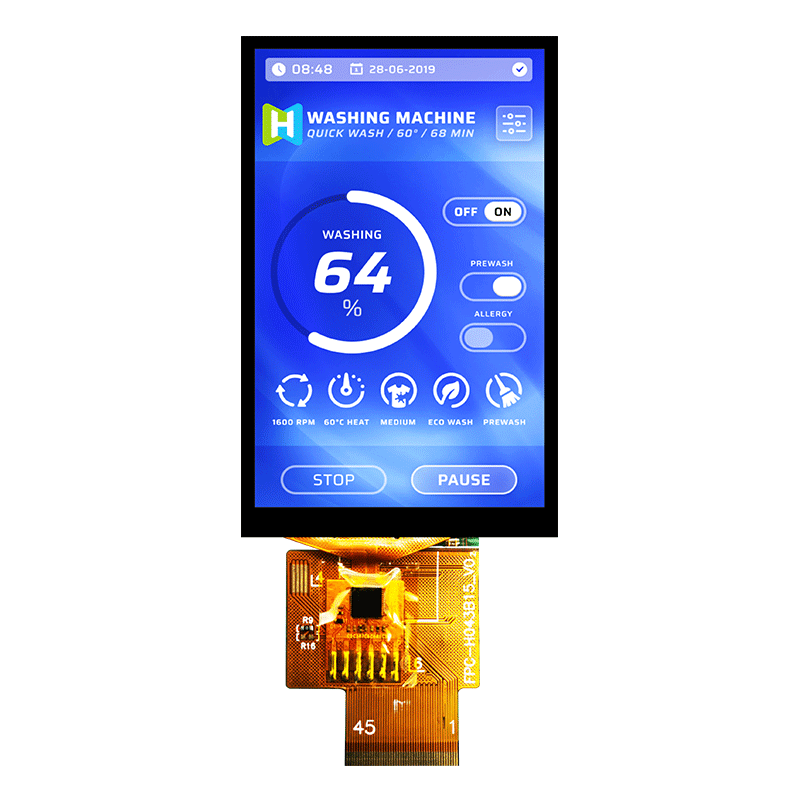

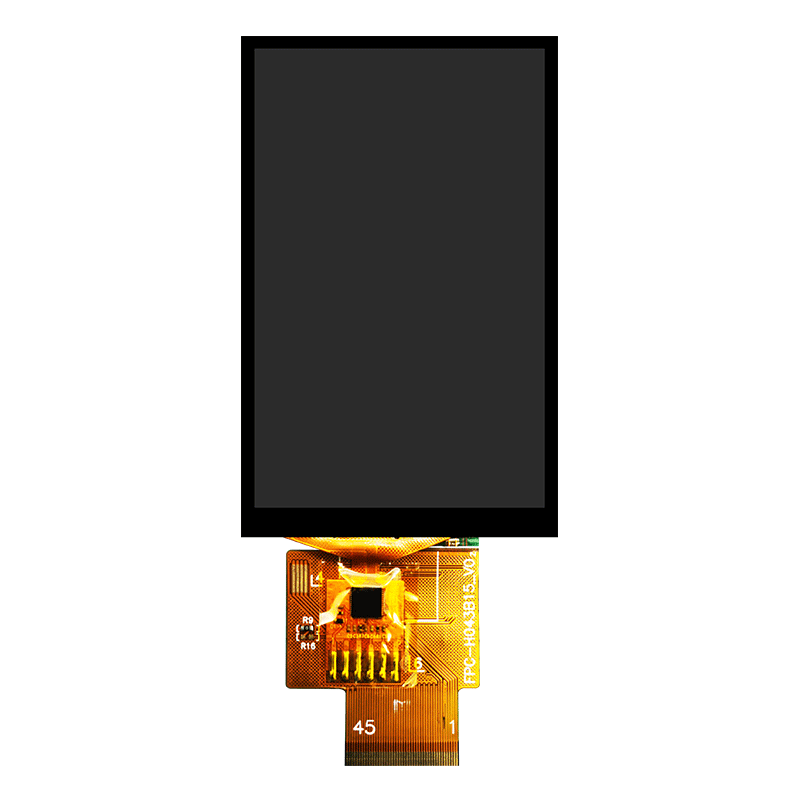

4.3寸TFT IPS全视角 480X800分辨率 LCD电容触控屏-TFT液晶模组厂 TFT-H043B15WVIST3C45
4.3寸TFT电容触控屏--工业级LCD液晶显示屏制造商--深圳鑫洪泰官网

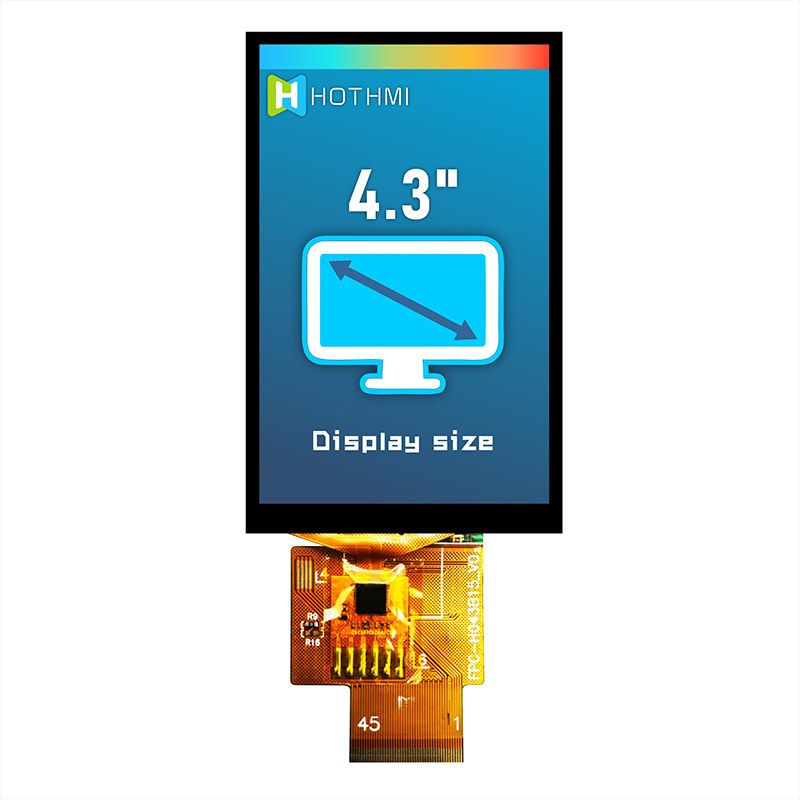

这是对具有电容式触摸面板和 3:2 纵横比的 TFT 显示模块的描述。 显示屏尺寸为4.3英寸，分辨率为480×800像素。 它采用市场上流行的 IPS 面板，提供 80/80/80/80 度的宽视角。
驱动IC GT911支持4通道MIPI接口，背光低功耗。 显示屏提供 350 cd/m2 的亮度和 800:1 的对比度（典型值）。模块工作电源电压范围为2.6~3.6V，典型值为3.3V。 设计工作温度范围为-20至+70℃，存储温度范围为-30至+80℃。
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.3 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 56.16x93.6mm | mm | ||

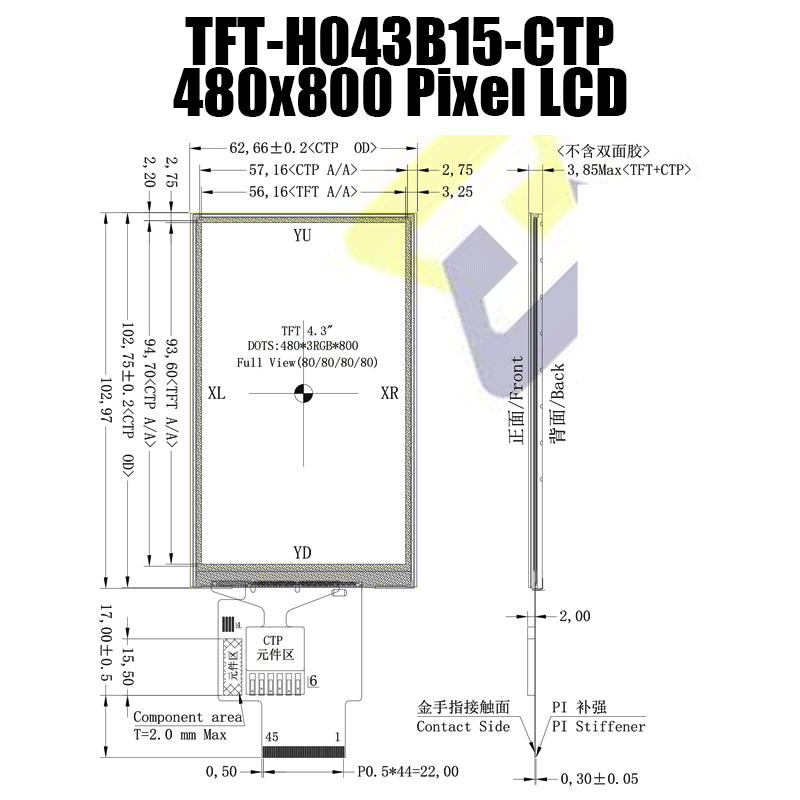

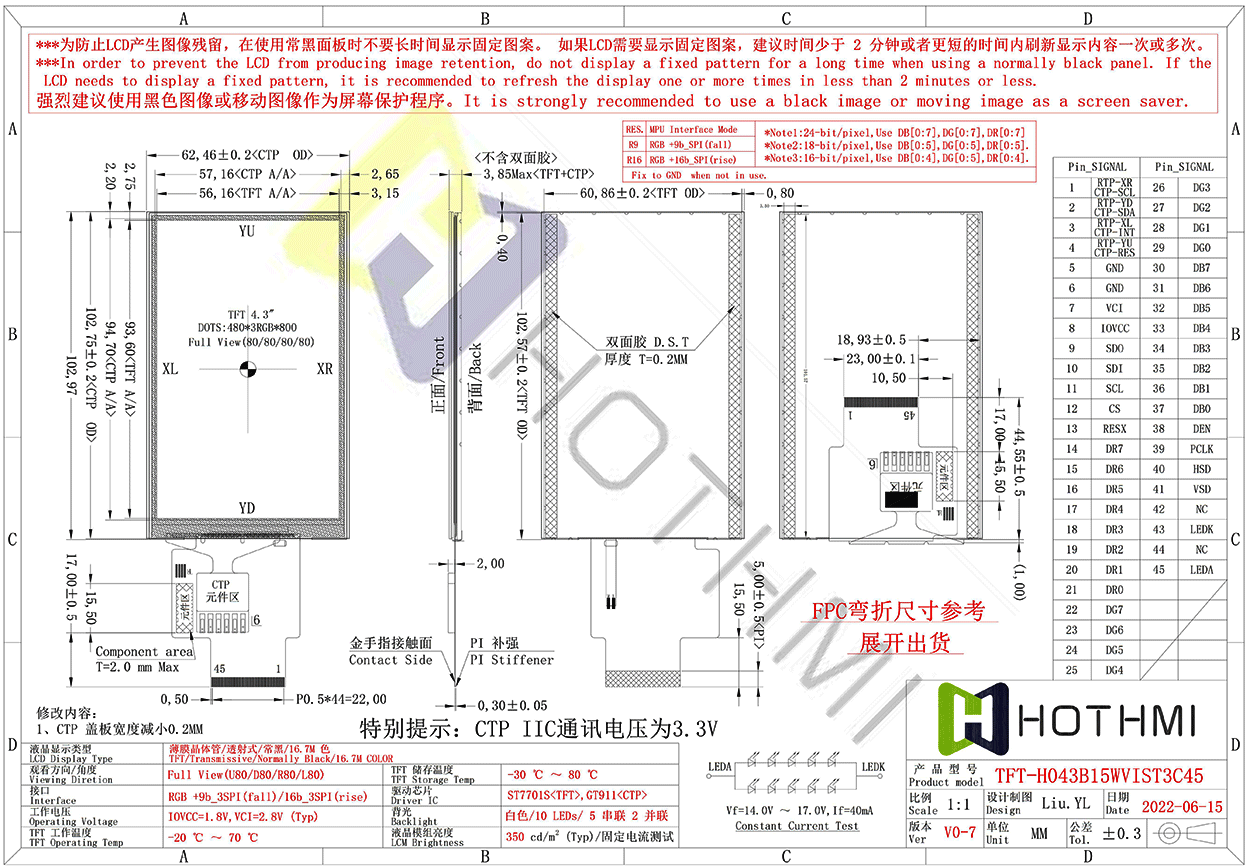

Outline Dimension | 62.46x102.97x3.85 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | SPI+RGB | - | ||
Driver IC | ST7701S(TFT)GT911(PCAP) | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
Pin Description
| Pin NO. | Symbol | Description |
| 1 | RTP-XR/CTP-SCL | Touch control pin |
| 2 | RTP-YD/CTP-SDA | Touch control pin |
| 3 | RTP-XL/CTP-INT | Touch control pin |
| 4 | RTP-YU/CTP-RES | Touch control pin |
| 5~6 | GND | Ground |
| 7 | VCI | Digital Power |
| 8 | IOVCC | Power Supply for I/O System |
| 9 | SDO | Serial data output pin used for the SPI Interface. |
| 10 | SDI | Serial data input/output bidirectional pin for SPI Interface. |
| 11 | SCL | Serial clock input for SPI interface. |
| 12 | CS | A chip select signal |
| 13 | RESX | TFT Reset Pin |
| 14~21 | DR[7~0] | Red data bus |
| 22~29 | DG[7~0] | Green data bus |
| 30~37 | DB[7~0] | Blue data bus |
38 |
DEN | Data input enable. Low: access enabled ; High: access inhibited |
| 39 | PCLK | Pixel clock input pin |
| 40 | HSD | Horizontal sync signal |
| 41 | VSD | Vertical sync signal |
| 42 | NC | No Connect |
| 43 | LEDK | LED Cathode |
| 44 | NC | No Connect |
| 45 | LEDA | LED Anode |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
