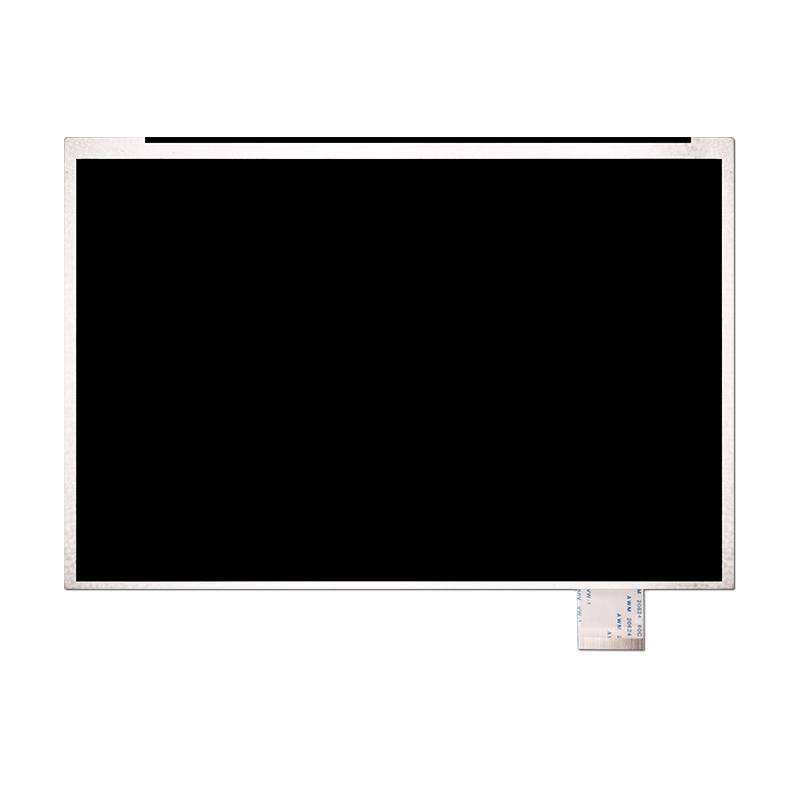

类型：TFT横屏

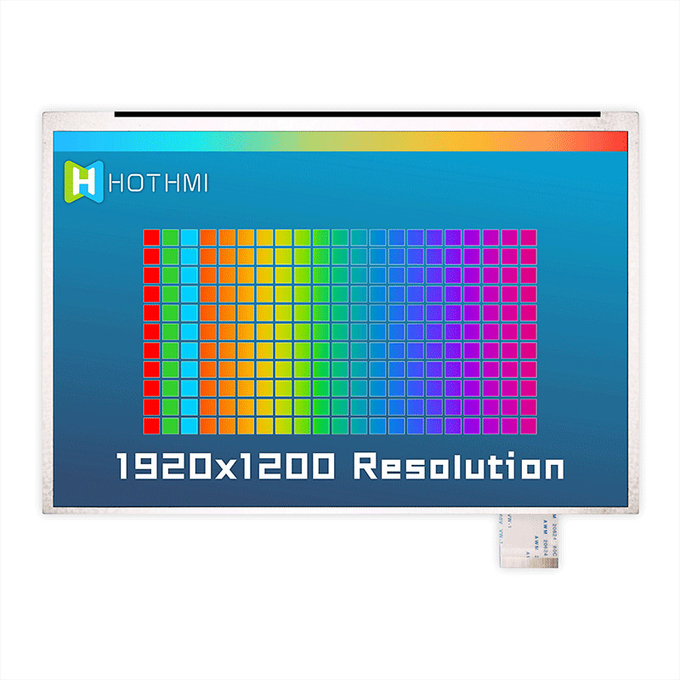

显示像素：1920x1200
外形尺寸(mm) ：230.20x150.00x21.55
VA尺寸(mm)：10.1
AA尺寸(mm) ：10.1
有效尺寸mm：216.81x135.50
应用：车载，医疗，工控
视角：全视角
背光/亮度：1000cd/m2
接口方式：HDMI/VGA

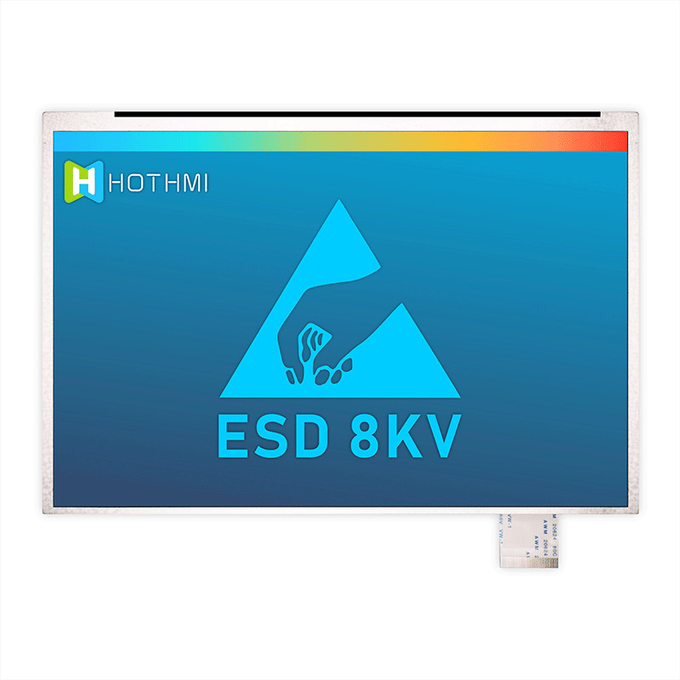

特殊说明：抗静电ESD 8KV

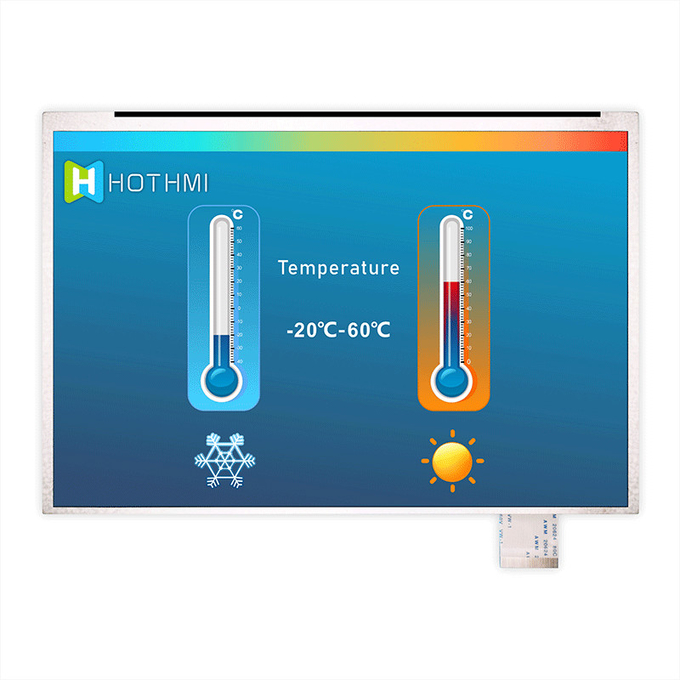

工作温度：-20~60℃
供电电压：12.0V
驱动芯片：T.B.D

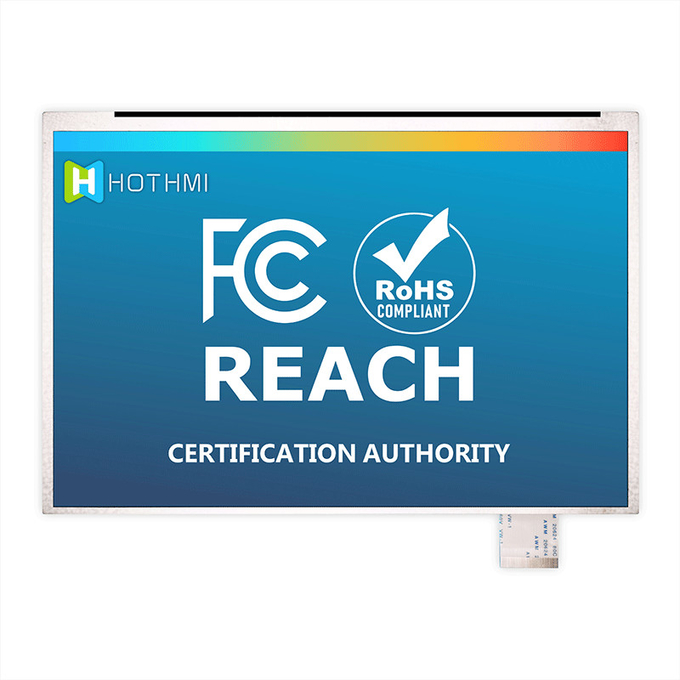

这款 10.1 英寸、24 位真彩色 IPS TFT LCD 模块具有内置的 HDMI 兼容性，可通过更少的电缆简化设备之间的连接。 为了提供额外保护，这款 10.1" 显示器还在输入电源线上包含一个 EMI 滤波器。IPS 技术和 1920x1200 分辨率屏幕提供阳光下可读的亮度、更好的色彩再现、更好的图像一致性以及在任何角度下都更好的光学特性。组装到 显示器，定制 PCB 为用户提供一体化、即插即用的 HDMI 解决方案。它连接到钢制安装支架，带有螺纹支架和与机架单元 (RU) 间距兼容的安装孔，简单、 安全安装。左右扬声器端子适用于 8 欧姆扬声器，每个扬声器功率高达 10 瓦。还有一个板载模拟设备 ADV7611 HDMI 接收器和一个带 PWM 的高亮度 LED 背光。是否需要为您的 Raspberry Pi 显示 、BeagleBone、Windows 或适用于 Linux 或其他嵌入式系统的触摸屏 HMI，此显示器提供了解决方案。此液晶显示器也符合 RoHS 标准，不包括触摸屏 重新。
产品介绍
-10.1寸HDMI标准显示器，1920x1200高清分辨率
-显示亮度高达1000 cd/m 2 ，寿命长达30,000小时。 当然可以根据需要定制更高的亮度和更长的寿命。
-支持OSD控制键，帮助用户将LCD调整到适合不同应用的最佳状态，OSD菜单可中英文切换。 当然也可以根据需要定制其他语言。
-支持HDMI 1.4A兼容数字输入接口
-兼容DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux等主流操作系统和嵌入式操作系统。
General Feature
Item | Standard Value | Unit | ||
Display Size | 10.1 | Inch | ||
Number of Pixels | 1920(H)*3(RGB)* 1200(V) | dots | ||
Active Area | 216.81(H)* 135.50(V) | mm | ||
Outline Dimension | 230.20(H) * 150.00(V) * 21.55(D) | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | HDMI 1.4 | - | ||
Driver IC | T.B.D | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=12V | V | ||
TFT Operation AT | -20 ～ +60 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
Port Description
?Power Input Connector Description
1,Polarity: inside positive and outside negative
2,Contact inner diameter: 2mm/contact outer diameter: 6.3mm
3,Rated load: 12V/2A
| Pin NO. | Symbol |
| 1 | VIN |
| 2~3 | GND |
?HDMI Type A Connector Description
| Pin NO. | Symbol |
| 1 | TMDS D2+ |
| 2 | TMDS D2 Shield |
| 3 | TMDS D2- |
| 4 | TMDS D1+ |
| 5 | TMDS D1 Shield |
| 6 | TMDS D1- |
| 7 | TMDS D0+ |
| 8 | TMDS D0 Shield |
| 9 | TMDS D0- |
| 10 | TMDS CK+ |
| 11 | TMDS CK Shield |
| 12 | TMDS CK- |
| 13 | NC |
| 14 | NC |
| 15 | DDC CLK |
| 16 | DDC DATA |
| 17 | GND |
| 18 | +5V Power |
| 19 | HPD |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

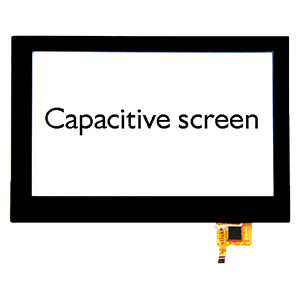

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

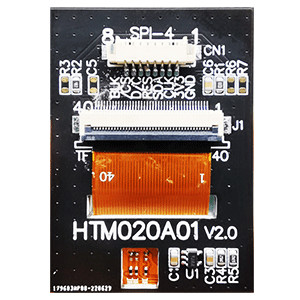

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.
